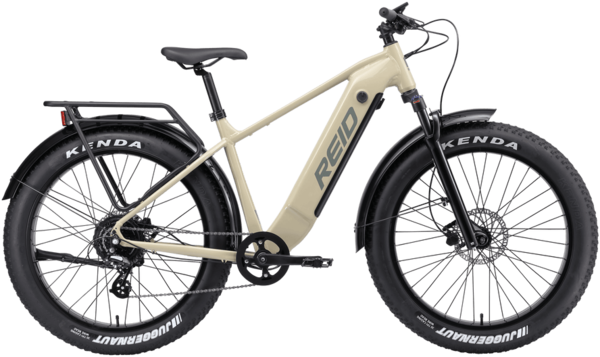

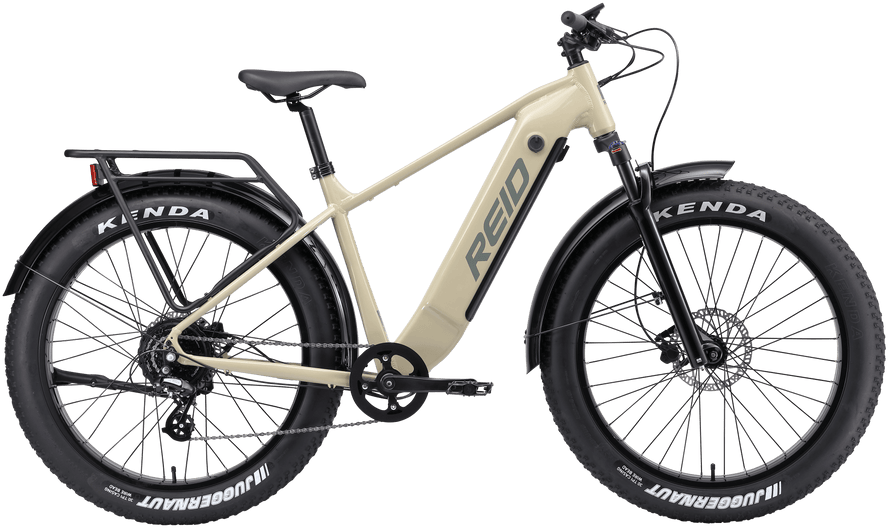

Reid Tracker 1

Reid Tracker 1
  • Color: Tan
$1,999.99
Color: Tan
Size: 38cm
Wheel Size: 26-Inch
Please select options Unavailable

Details

The Tracker is your ultimate adventure companion, built for taking you places you have never been before. Power and control are at the heart of everything the Tracker does.

Equipped with a 750w motor and 15AH battery, the power is always there. Giving you control is a combination of a torque-sensing bottom bracket and thumb throttle. The torque sensor helps give a natural feel to the ride, and when the legs are tired the throttle gives all the go with none of the effort.

Tackling treacherous terrain is the Trackers home turf. 4.0" wide tires give you the grip you need on soft and rocky terrain transferring all the motor power where it’s needed. Combined with the suspension fork they make for a super smooth and controlled ride. Tektro HD-M275 hydraulic disc brakes provide impressive stopping power with plenty of modulation, making tricky descents and technical sections feel relaxed. Shimano 8-speed rapid-fire shifting makes changing gears a breeze, keeping your concentration on the trail. Finished with front and rear mudguards, rear rack, and kickstand, the tracker really is the complete adventure eBike.

Charge it up and see where it takes you!

Sizes:
SizeSmall (38cm)Medium (43cm)Large (48cm)Extra Large (53cm)
Top Tube Length 594.6 595 605 615
Seat Tube Length 380 430 480 530
Head Tube Length 160 155 155 155
Seat Tube Angle 73 73 73 73
Head Tube Angle 69 69 69 69
RC Length 460 460 460 460
BB Drop 60 60 60 60
Fork Offset 46 46 46 46
Front Centre 1120 1120 1139 1140
Wheelbase 510 510 510 510
Sizes:
SizeRange (cm)Range (ft & in)
Small 165 - 172 5'5" - 5'8"
Medium 172 - 177 5'8" - 5'10"
Large 177 - 185 5'10" - 6'1"
X Large 185 - 193 6'1" - 6'4"

Specs

Frame 6061 aluminium with intergrated battery
Fork Uding D9
Wheels Reid double wall alloy 36H fat bike
Hubs Reid alloy 36H 6 bolt disc
Tires Kenda Juggernaut 26x4.0"
Bottom Bracket Sealed bearing
Chainrings 38T 170mm allopy with torque sensor
Shifters Shimano SL-M315
Rear Derailleur Shimano RD-M310
Cassette/Freewheel Shimano HG200 8 speed 12-32T
Chain KMC Z 8.1 8 speed
Brakes Tektro HD-M275 hydraulic disc brakes
Brake Levers Tektro HD-M275
Handlebars Reid alloy riser bar 720mm
Tape/Grips Reid MTB
Stem Reid alloy 50mm
Seatpost Reid alloy 30.9 mm, 350mm micro adjust
Saddle Reid MTB
Pedals Reid alloy platform
Motor Jiabo 750w 48V
Battery 48V 15ah 720WH
Controller/Display KD51C LCD

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Tan / 38cm / 26-Inch 05060988629155 1246079238 TRA26111533H
